Comparison between Floatboxx VESC enclosures
All Floatboxx's
- are compatible with the XR and Fungineers platform.
- are compatible with the stock footpad and stock connector, without modification!
- maintain the full handle space
- have an aluminium heatsink to mount the VESC on
We currently make 4 models:
MCM
Compact, stainless steel VESC enclosure. Designed around the Cheap Focer VESC and supporting the original XR connectors for footpad, Hypercore motor and battery harness. CFocer is mounted to the aluminium lid.
MCM: Molex - CFocer - Molex
MLC
This is the Original Floatboxx. Completely made from aluminium and superlight. Designed around the Little Focer V3.0/V3.1 VESC and supporting the original XR connector for footpad and Hypercore motor. Battery cable via cable gland.
MLC : Molex - LFocer - Cable Gland

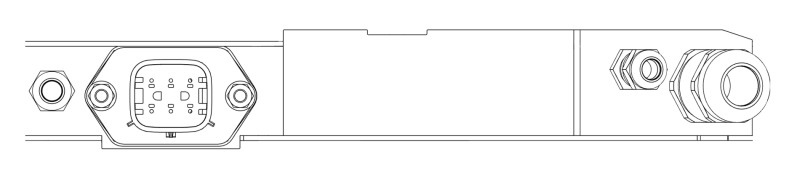

MxC V2
Our new modular platform for motor via Molex and battery cable via cable gland. A stainless steel body with modular aluminium heatsink to support various VESC models.
MLC V2: Molex - LFocer - Cable gland
MTC V2: Molex - Thor-300 - Cable gland
MUC V2: Molex - Ubox 80V/100V- Cable gland
MEC V2: Molex - Ennoid Mk8 - Cable gland

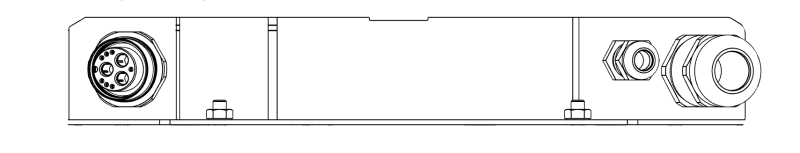

CxC V2
Our new modular platform for motor and battery cable via cable gland. Updated to fit the Fungineers motor connector as well. A stainless steel body with modular aluminium heatsink to support various VESC types.
CLC V2: Cable gland - LFocer - Cable gland
CTC V2: Cable gland - Thor-300 - Cable gland
CX12C V2: Cable gland - Tronic X12 - Cable gland
CUC V2: Cable gland - Ubox 80V/100V - Cable gland
CEC V2: Cable gland - Ennoid Mk8 - Cable gland
All current Floatboxx models
| Floatboxx | Motor Connector | VESC Controller | Battery Connector |
|---|---|---|---|
| MCM | Molex + Switchcraft (Stock XR Onewheel) | Cheap Focer | Molex (stock XR Onewheel) |
| MLC | Molex + Switchcraft (Stock XR Onewheel) | Little Focer | Cable gland |
| MLC V2 | Molex + Switchcraft (Stock XR Onewheel) | Little Focer / Tronic 250R | Cable gland |
| MTC V2 | Molex + Switchcraft (Stock XR Onewheel) | Thor-300 | Cable gland |
| MUC V2 | Molex + Switchcraft (Stock XR Onewheel) | Ubox 80V/100V | Cable gland |
| MEC V2 | Molex + Switchcraft (Stock XR Onewheel) | Ennoid Mk8 | Cable gland |
| CLC V2 | Cable Gland or Superflux Connector | Little Focer / Tronic 250R | Cable gland |
| CTC V2 | Cable Gland or Superflux Connector | Thor-300 | Cable gland |
| CX12C V2 | Cable Gland or Superflux Connector | Tronic X12 | Cable gland |
| CUC V2 | Cable Gland or Superflux Connector | Ubox 80V/100V | Cable gland |
| CEC V2 | Cable Gland or Superflux Connector | Ennoid Mk8 | Cable gland |
Floatboxx models comparison
| Feature | MCM | MLC | MxC V2 | CxC V2 |
|---|---|---|---|---|
| Motor | XR Hypercore |
XR Hypercore Superflux Mk I/II |
XR Hypercore Superflux Mk I/II |
Superflux Mk I/II |
| Motor connector | Molex 6-pin + Switchraft |
HC: Molex 6-pin + Switchraft [SF Mk I: cable gland] [SF Mk II: SF connector] |
HC: Molex 6-pin + [Switchraft] [SF Mk I: cable gland] [SF Mk II: SF connector] |
M20 cable gland or Fungineers Motor connector |
| On/off Switch size |
M19 [M16] |
M19 |
M19 [M16] |
M19 [M16] |
| Charge port size | XLR |
XLR
[GX16] |
XLR
[GX16] |
XLR
[GX16] |
| Battery connector | Molex 16-pin | M20 cable gland | M20 cable gland | M20 cable gland |
| Footpad connector | Stock | Stock |
M10 cable gland
[stock connector] |
M10 cable gland
[stock connector] |
| VESC ctrl | CFocer | LFocer V3.0/V3.1 | various | various |
| VESC location | lid mount | bottom mount | bottom mount | bottom mount |
| Connector cover | removable | removable | removable | integrated |
| Weight (boxx, screws, lid, seal) | 900 gr = 2 lbs | 490 gr = 1.08 lbs | 950 gr = 2.08 lbs | 950 gr = 2.08 lbs |
| Compatibilities: | ||||
| - Bumpers |
Stock, Bang
(not Badger) |
Stock, Bang, Badger,... |
Stock, Bang
(not Badger) |
Stock, Bang
(not Badger) |
| - Footpad | Stock, Platypus, Kush, DIY | Stock, Platypus*, Kush*, DIY | Stock, Platypus*, Kush*, DIY | Stock, Platypus*, Kush*, DIY |
Values between square brackets [ ] are possible via an optional adapter in the webshop or 3D printable.
*For bottom mount Floatboxx in combination with a soft footpad the use of a footpad supporting plate is advised.
Other common features for all Floatboxx models:
- Strong ! Does not break easy
- Metal welded construction
- Stainless steel inserts for the lid and rail mounting
- Practical
- Easy access for DIY: Just remove the footpad to access the lid. No need to remove rails, bumper, connector cover.
- Easy to waterproof: welding imperfections can be closed with silicone/MS Polymer/...
- LED bar external: to be 3D printed by user
- Improved heat dissipation for the controller:
- The heatsink is completely made of aluminium allowing optimal heat transfer
