Floatboxx MxM V2
The Floatboxx MxM is a fully Aluminum VESC box for the Onewheel XR platform. To replace a broken XR controller or as the simplest way to start your VESC adventure while keeping the stock Hypercore motor, battery pack and harness.

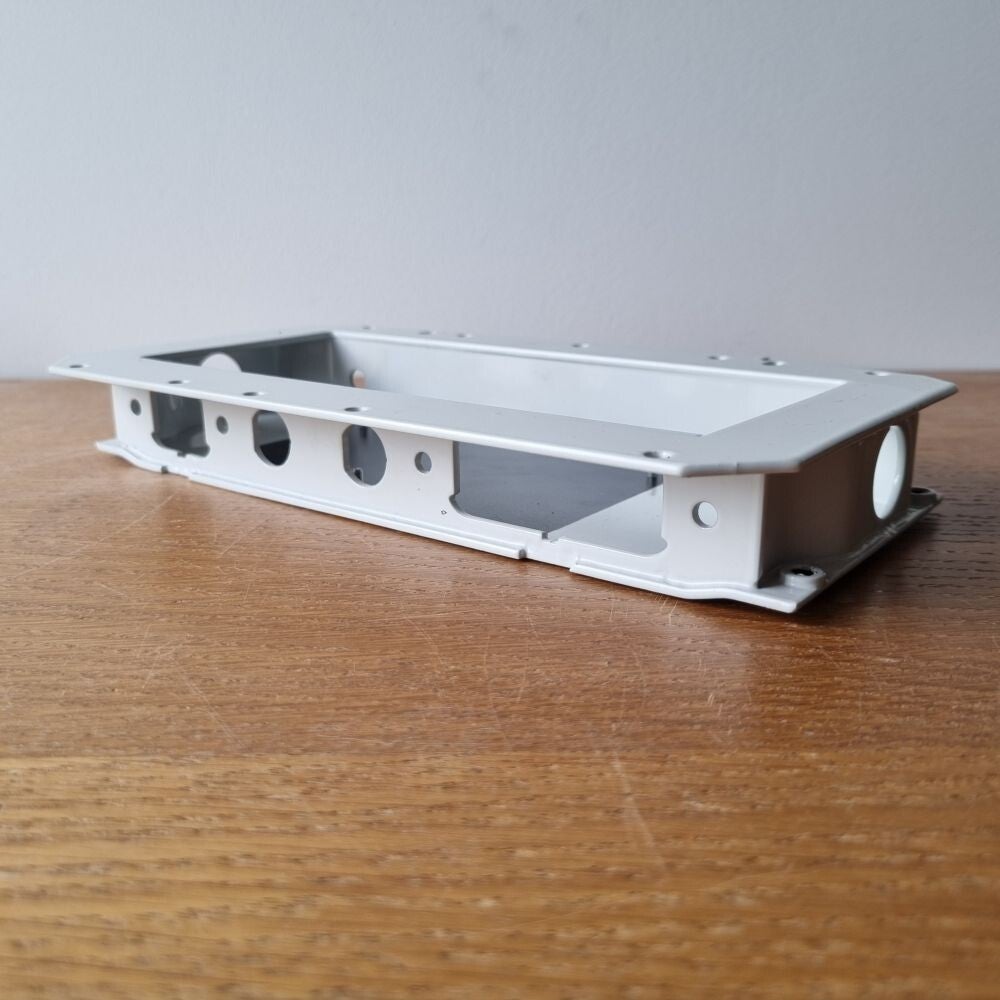

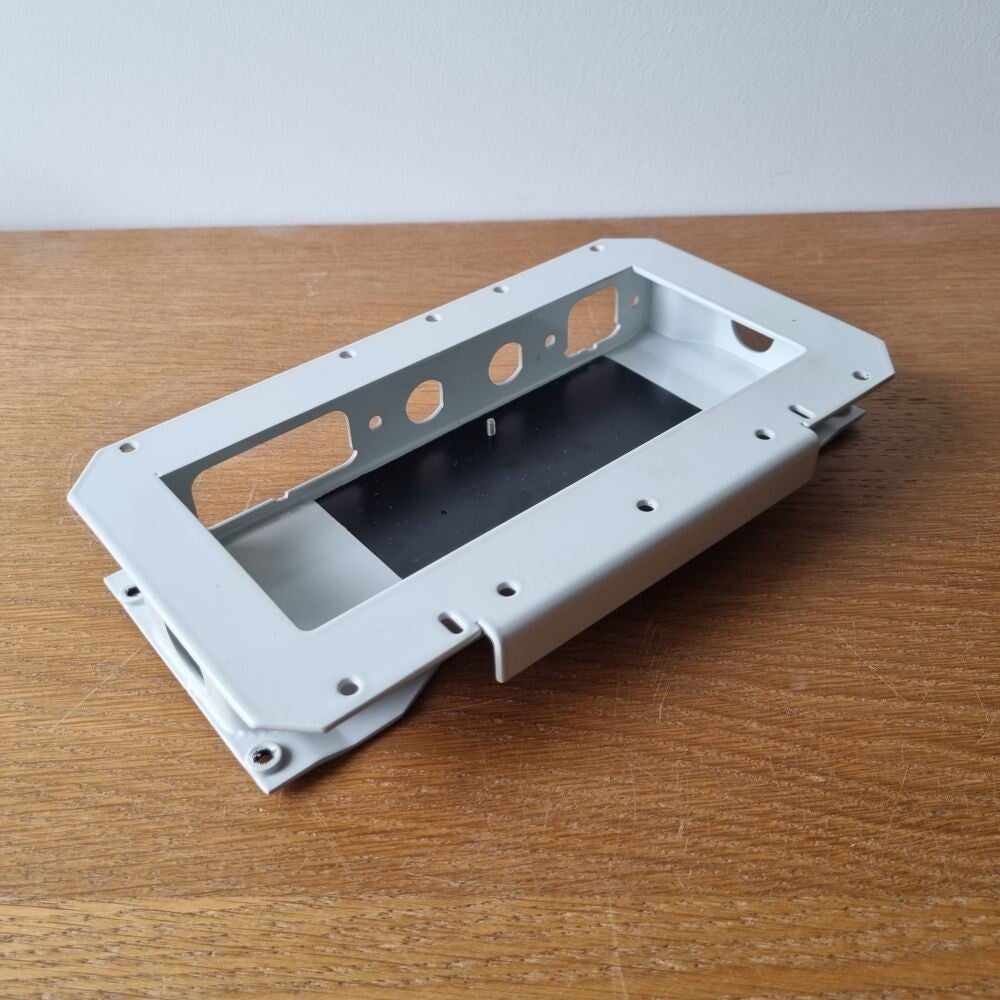

The light aluminium controller box is welded all around for maximum strength. There is no need for a footpad support plate.
Various VESC controllers are supported through an interchangeable Controller plate.
MxM:
- M: Compatible with the stock XR 6-pin Molex for Hypercore

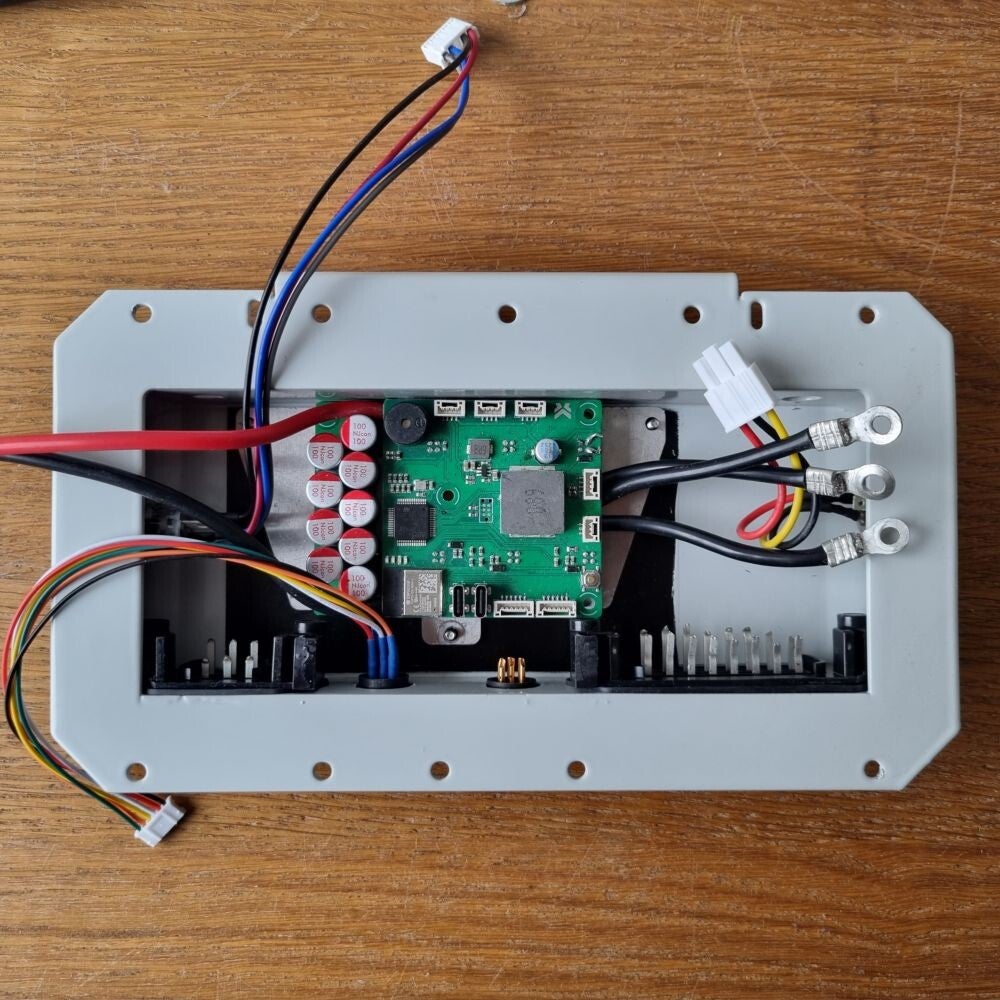

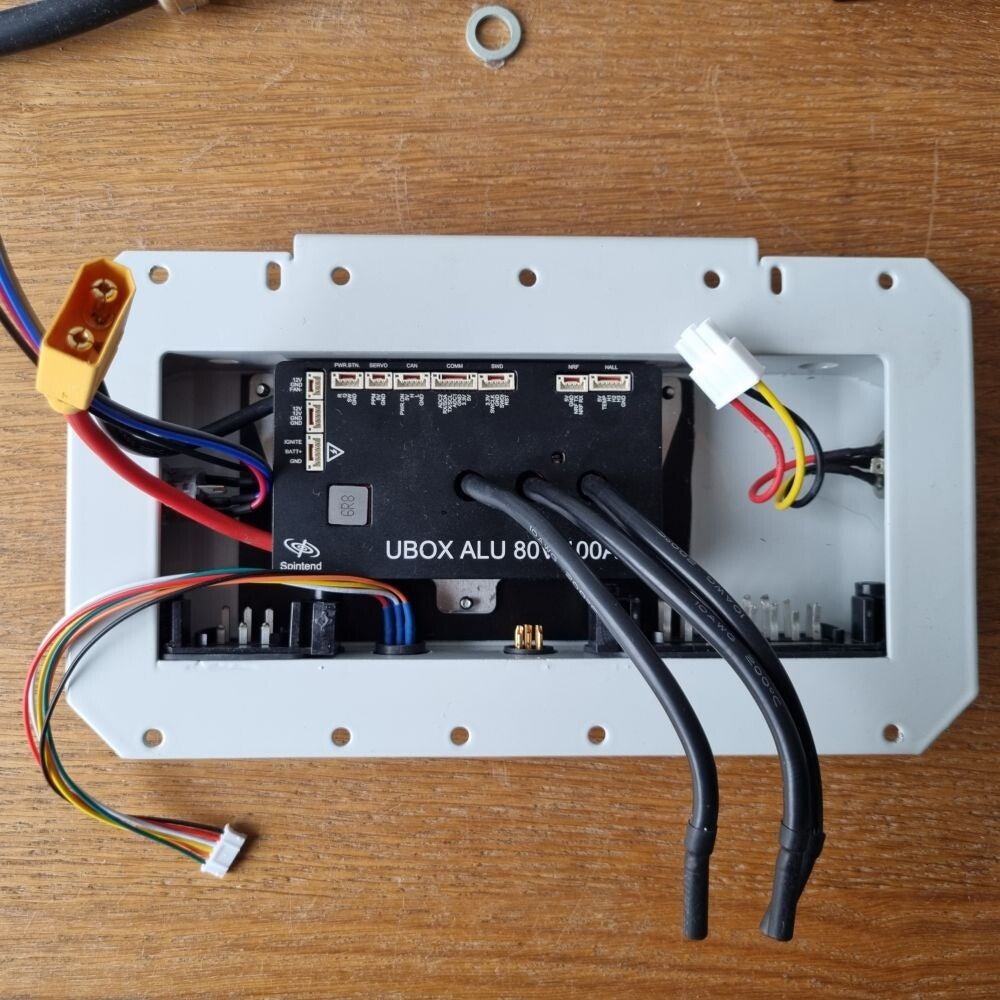

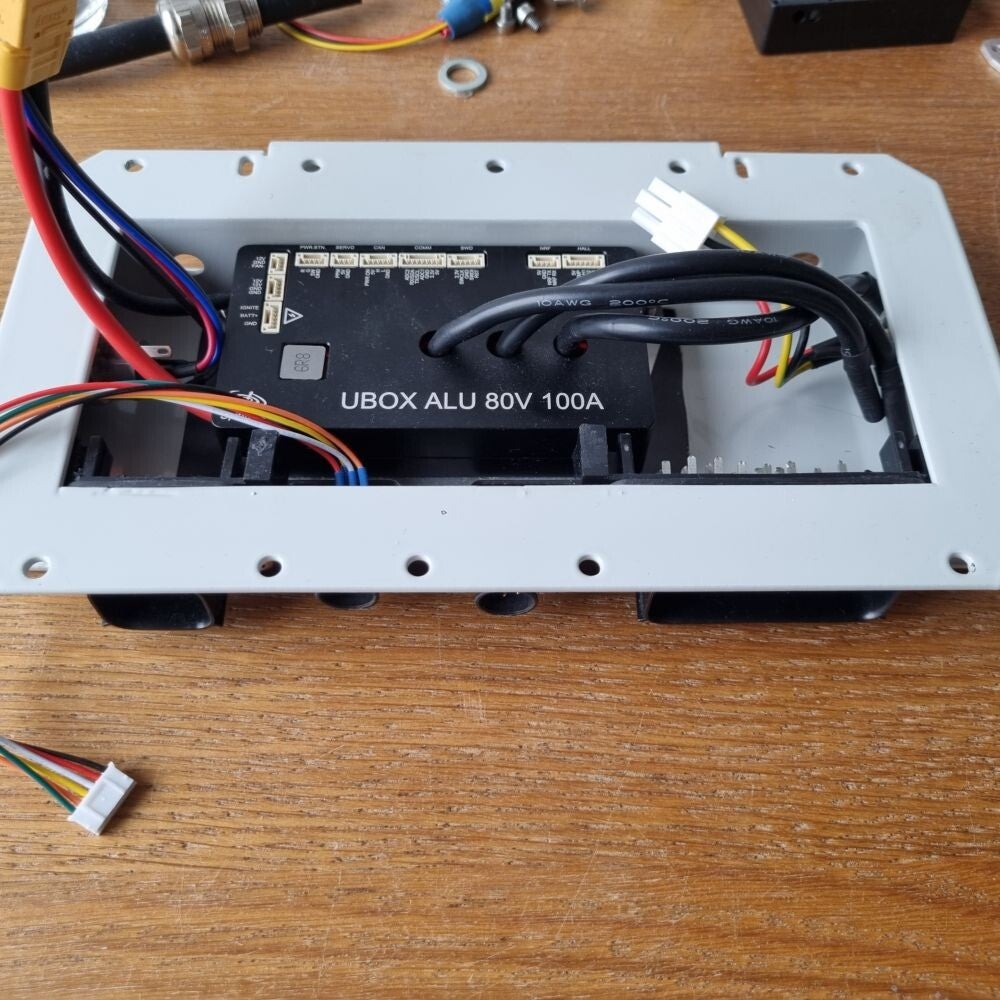

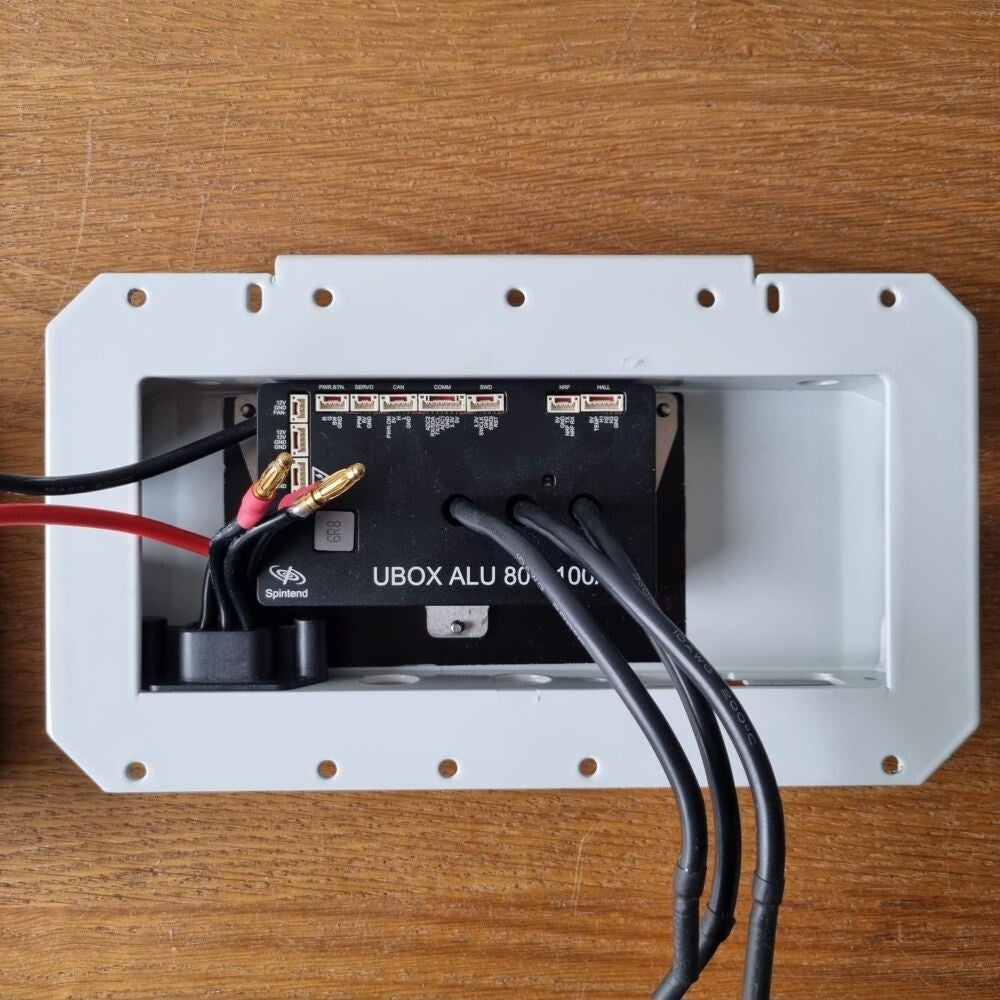

- x: VESC controller plates available for Ennoid, Thor-300, Jetfleet, Ubox
- M: Compatible with the stock XR 16-pin Molex battery harnass
Weight: 600 gr = 1,33 lbs (box, screws, lid, seal)
Pre-order: delivery mid July 2025
The advantage of Floatboxx box compared to other type of boxes:
- Strong ! Does not break under heavy use
- aluminium welded all around !
- Stainless steel inserts for the lid and rail mounting
- Practical
- waterproof
- The handle remains available
- Mounting holes for 3D printed LED strip holder
- Heat dissipation for the controller:
- The VESC controller is mounted on an aluminum heatsink
Compatibility:
- rails: all stock and after-market XR rails
- bumpers: stock, Bangs.
- footpad: stock XR, DIY footpads
Content:
- metal box and connector cover (powderpainted grey)

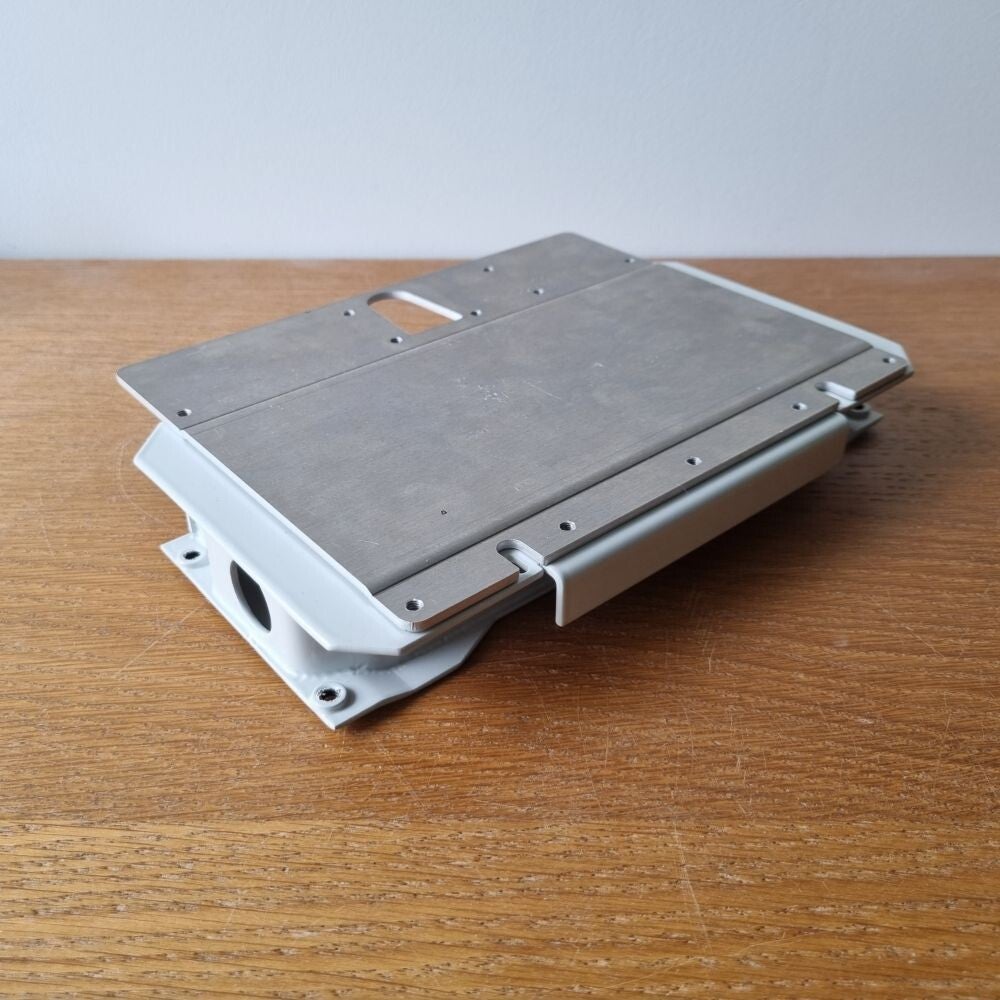

- aluminium lid (unpainted)
- aluminium connector cover/splach cap
- foamrubber sealing sticker
- 2 vent stickers
- all nut 'n bolts in stainless steel, including mounting hardware for the VESC
Connections:
The connectors should be purchased separately OR re-used from a discarded Future Motion XR controller.

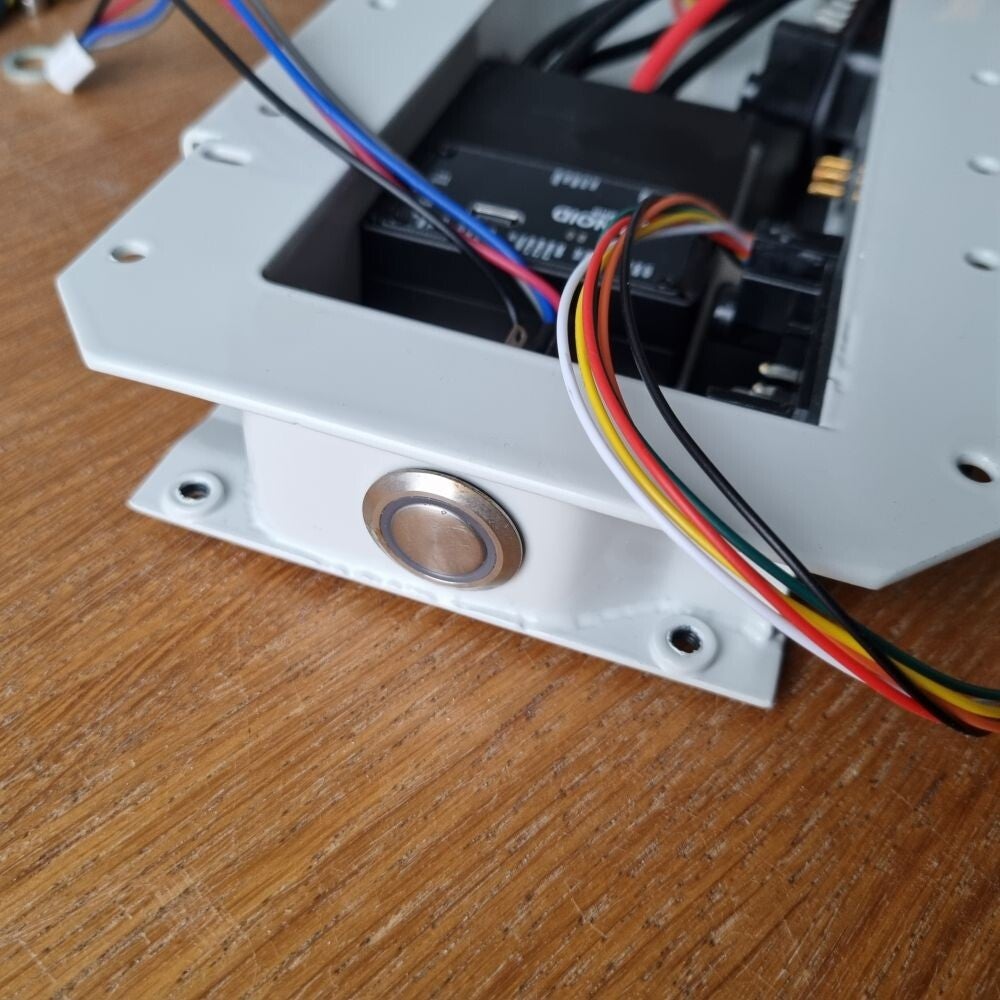

- on/off switch: ø19 mm hole for the switch
- Pre-wired available from MakersPEV/Customwheel
- charge plug: D-shaped hole for the Neutrik NC3 MPR-HD XLR
- Pre-wired available from MakersPEV/Customwheel
- hall/footpad: 2x D-shaped holes for Switchcraft connectors
- Prewired from MakersPEV/Customwheel
- motor: compatible with the Hypercore 6-pin Molex, similar as Flowglider
- battery: compatible with the stock 16-pin Molex, similar as Flowglider
Notes:
- We use metric screws and tools: M5 to mount the box, M4 to mount the lid
- Floatboxx MxM is as waterproof as possible, but do a visual inspection first for small gaps. For 100% certainty: use the Badgerwheel kit . Total waterproofness depends on the complete assembly by the user.
- use thermal paste between VESC - heatsink and heatsink box
MxM compatible items
-
M16-M19 switch adapter €15.00 -
GX16 adapter €15.00
3D print accessoires
See the Download section for CAD files for Floatboxx accessoires:
- LED strip bar (TBC)
